Brand New In Box
Raymarine Ray55E VHF Radio
European Marine Radio Version
(E43037)

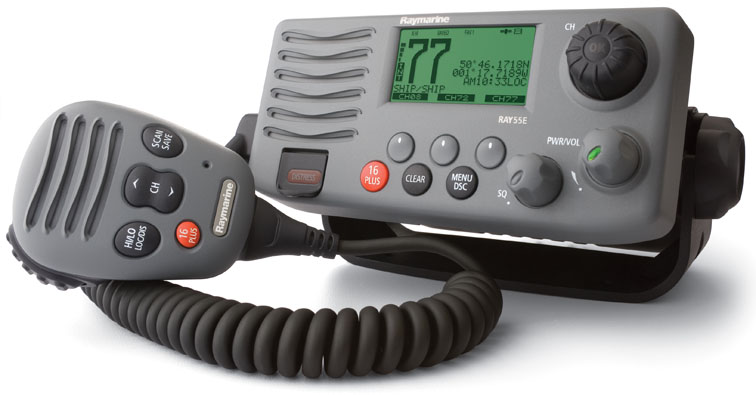

Raymarine Ray55E VHF Radio is a waterproof (IPX7) fixed mount compact Radio with unmatched performance and style. This is a European Marine Radio Version.
The Raymarine Ray55E VHF radio packs a whole host of powerful features into a radio that is compact, rugged, IPX7 Panel submersible and reliable. With its 25 Watts transmitter power and the superior receiver with excellent noise rejection you will be heard and hear loud and clear.
Ray55E offers easy-to-use rotary controls for volume, squelch and menu operation combined with an extra large dot matrix LCD display with dual channel mode that displays both the active and standby channel simultaneously. The standard microphone includes integrated controls for channel selection as well as a built-in speaker. A standard external speaker connection is also available.
Raymarine Ray55E features Class D digital select calling with a built-in 1 touch DSC distress button for digital broadcast of your boat’s GPS position and digital mayday. The DSC (Digital Sellective Calling) Button is protected by a spring loaded cover to prevent it from being accidentally pressed.
The Ray55E VHF Radion is also expandable to 2 stations using the optional Raymic Full Function Handset (sold separately). The Raymic enables intercom capabilities between Ray55E and Raymic at a remote station. Watch modes as well as programmable scanning are all included.
The Raymarine Ray55E VHF Radio kit includes radio, microphone, sun cover, yoke mounting bracket, power/speaker/data cable, mounting hardware and instructions. An optional in-dash flush mounting kit is available separately.

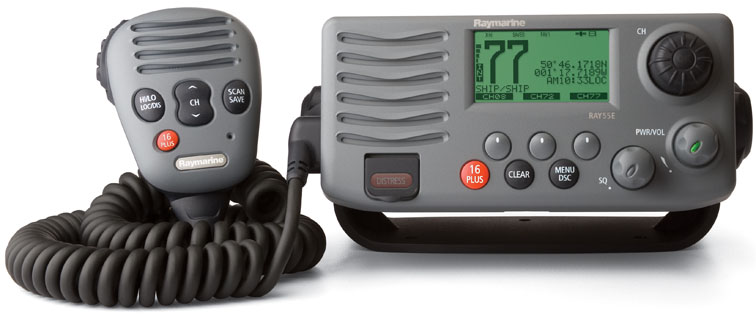

Raymarine Ray55E VHF Marine Radio - European Version E43037
|
|
Raymarine Ray55E VHF Radio Features:
- Class D DSC (Digital Selective Calling) transceiver
- DSC Distress key transmits GPS position and a digital mayday
- NOAA Weather Alert
- NMEA 0183 input with GPS Position, COG and SOG display
- Chartplotter position polling using NMEA 0183 output
- Easy-to-use rotary controls for channel, volume, squelch and menu operation
- Extra large dot matrix LCD
- Speaker microphone with controls and remote mount option
- Dual Channel Display (2UP Mode) displays active channel and stand by channel simultaneously
- Programmable favorite channel soft keys (1UP Mode)
- Quick Access 16/9 Key
- 4 Scan Modes: All Scan, Saved (Memory) Scan, Priority All Scan and Priority Saved Scan
- Submersible (IPX7 Standard)
- Superior receiver with excellent intermodulation rejection
- Rugged housing with a low profile bezel using the optional flush mount kit (order # A46053)
- Optional Raymic remote station handset serves as full function second station
- Raymic enables intercom capabilities between Ray55E and Raymic at a remote station
Raymarine Ray55E VHF Radio Specifications:
General |
|
Mounting |
Bracket or flush mount |
|
|
Power |
12 VDC system (13.6 VDC, typical) |
|
|
Environmental: Operating Range, Storage Range, Humidity |
Waterproof to IPX7 –10°C to +50°C, –20°C to +70°C, up to 95% |
|
|
Frequency Range: |
Transmit: 156.050 to 162.425 MHz , Receive 156.050 to 163.275 MHz |
|
|
Hailer Output Power: |
30 watts @ 4 ohms |
|
|
NMEA IN Sentences supported (NMEA 0183 ver 3.01): |
GLL, GGA, RMA, RMC, GNS |
|
|
NMEA OUT Sentences (NMEA 0183 ver 3.01): |
DSC, DSE |
|
|
Warranty |
2 Year limited warranty |
|
Transmitter |
|
RF Power (at 13.6 VDC): Hi Mode, Lo Mode |
25 W, 1 W |
|
|
Maximum Deviation |
± 5 KHz |
|
|
FM Hum and Noise Level |
less than -40 dB below audio level |
|
|
Adjacent Channel Power |
more than 70 dB |
|
|
Spurious/Harmonic Emissions |
less than -70 dBc |
|
|
Current Drain: Hi Power at 13.6V DC |
less than 6 A |
|
Receiver |
|
Sensitivity @ 12db SINAD |
0.28 µV, typical |
|
|
Hum and Noise |
less than -40 dB below audio level |
|
|
Audio Distortion |
less than 10% |
|
|
Adjacent Channel Rejection |
more than 80 dB, typical |
|
|
Intermodulation Rejection Ratio |
more than 80 dB, typical |
|
|
Spurious Image Rejection |
more than 80 dB, typical |
|
|
Squelch Sensitivity |
@ Tight - less than 1 µV, @ Threshold - less than 0.28 µV |
|
General |
|
Confroms to: |
IEC62238, EN300-698-2/3, and essential requirements of R&TTE Directive 1999/5/EC. |
|
|
