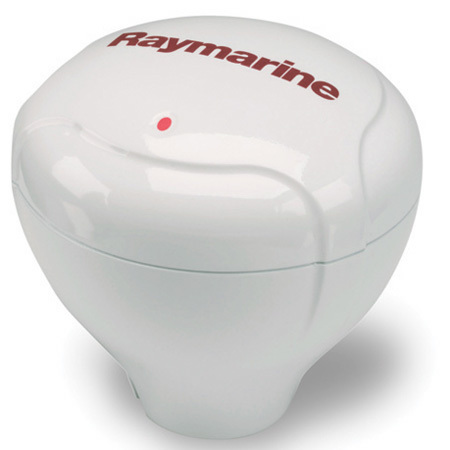

Raymarine RayStar125 Marine GPS Antenna Sensor Receiver (E32042)
, $289.00 (https://www.marine-electronics-shop.com/raymarine-raystar125-marine-gps-antenna-sensor-receiver-e32042/))
Sorry but this item is currently unavailable.
Please check back at a later stage.
Product Description
Brand New
Raymarine RayStar 125
Marine GPS Antenna
(E32042)
|
The Raystar125, a Compact and accurate Satellite Differential waterproof GPS receiver antenna provides high accuracy for Raymarine's Multifunction displays C-Series, E-Series and every other situation that an external GPS antenna receiver The Raystar125 is fully compatible with Raymarine's SeaTalk instruments and auto-pilots (SeaTalk or NMEA0183). The raymarine Raystar 125 delivers accuracy better then 3 meters by decoding Satellite Differential correction signals from the WAAS (Wide Area Augmentation System.) The Raystar125 comes with a 10 meter (33') interconnect cable, pole mounting kit, flush mounting kit and instuction manual. |
This unit has been replaced by the Raystar 125 Plus, E32119.
RayStar 125 Features
- Compatible with Raymarine E-Series, C-Series, Instruments and Autopilots.
- 12 channel satellite receiver with Satellite Differential corrections.
- WAAS, EGNOS and MSAS compatible.
- User selectable NMEA 0183 or Raymarine SeaTalk output.
- Low profile flush mount and threaded pole mount (1" x 14 TPI) kits included.
- Removeable interconnect cable facilitates easy installation.
- Built-in LED diagnostic indicator
RayStar 125 Specifications
| Power | |||||||
| Nominal voltage (DC) | 12V, 24V systems | ||||||
| Absolute voltage range (DC) |
9-32V (NMEA) 9-18V (SeaTalk) |
||||||
| Power consumption (typical) watts | 1.2W | ||||||
| Physical | |||||||
| Overall dimensions | diameter 95mm Height 30mm | ||||||
| Product weight | 0.13 Kg / 0.29 lbs | ||||||
| Mounting methods | flush/pole/rail | ||||||
| Cable length | 10m (33') | ||||||
| Data Interfacing | |||||||
| Protocols supported | NMEA 0183 or SeaTalk | Configured during installation process. | |||||
| Environmental | |||||||
| Operating temperature range | -10°C to +70°C | ||||||
| Non-operating temperature range | -20°C to +70°C | ||||||
| Humidity | up to 95% | ||||||
| Waterproofing standard | CFR46 | ||||||
| GPS Features | |||||||
| Type | Active antenna | ||||||
| Signal acquisition | 12ch. parallel (C/A code) | ||||||
| Satellite differential type | WAAS/EGNOS/MSAS | ||||||
| Differential acquisition | automatic (satellite) | ||||||
| Beacon differential ready | with RTCM input | ||||||
| Position accuracy (RMS) | |||||||
| Position accuracy with SDGPS (RMS) | |||||||
| Speed accuracy (RMS) | |||||||
|
Time to first fix from cold start (typical) |
|||||||
|
Time to first fix (after initial cold start) |
typically | ||||||
| NMEA Sentences Supported | |||||||
| Input Sentences | PRAYI, PRAYE, PRAYA | ||||||
| Output Sentences | GPGGA, GPGSA, GPGSV, GPGLL, GPRMC, GPDTM, GPGNS, GPVTG, PRAYA | ||||||
| Version | NMEA 0183 Version 2.3 | ||||||
