Raymarine C120W Chartplotter ROW Charts E62113-RW

Image 1
  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Pin It
RRP:
$3,967.00
Your Price:
$3,199.00 (You save $768.00)
SKU:
E62113-RW
Brand:
Condition:
New
Weight:
4.76 KGS
Shipping:
Free Shipping
Quantity:

Product Description

Brand New

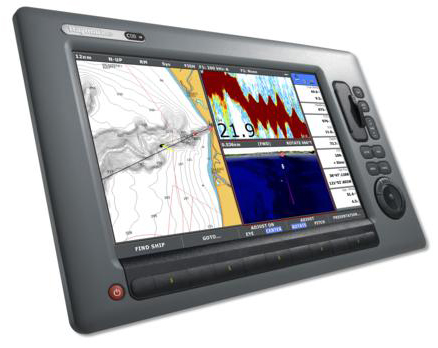

Raymarine C120W Chartplotter

C-Series Widescreen

Multifunction Displays

Preloaded with ROW Charts

(E62113-RW)






Raymarine C90W Chartplotter, a better combined Widescreen Mulitifunction Display with  Fishfinder and Radar, navigation system with increased performances.

Raymarine C120W Chartplotter takes navigating using multifunctional display systems to a  new level. Not only you can enjoy watching the data in a big, wide and vivid colored display but you can also easily expend yoursystem by connecting another C-Series widescreen display and other devices, sensors, receivers and more by using NMEA0183, NMEA2000, Seatalk and SeaTalkhssupported protocols which come as standart with the C120W .

  • With SeaTalkhs network switch you can connect sensors like Digital Radomes (Radar), HD Digital Sounder (for fishfinder) and SIRIUS receiver for Sattelite Weather and Radio.
  • Use NMEA0183 inputs/outputs to connect with AIS (Automatic Identification System) devices, DSC VHF Radio and other third party devices.
  • With NMEA2000 compatibility to watch digital display of engine gauges.
  • With SeaTalkng   technology to connect data Instruments & Auto pilot.
  • And finally to connect a LifeTag M.O.B system using the first   generation seaTalk connection.

With the C120W Chartplotter you can choose your ideal screen configuration for every navigation scenario. Use a full high resolution display screen navigation  or multiple windows combination of chart, radar, fishfinder, weather and video.

The C120W is equiped with high resolution 1280x800 pixel 12.1'' widescreen (WXGA) display that is viewable in direct sunlight and utilizes optical bonding technology for improved contrast, vibrant colors and wide viewing angle.

The Raymarine C120W (E62113-RW) is ready to navigate with an internal high sensitivity GPS sensor.It is pre-loaded with NAVIONICS Cartography cartography for the Rest Of the World (ROW Charts) and by using charts card of NAVIONICS PLATINUM with the built-in CompactFlash you could navigate with 3D view or Satellite photo charts. An on board graphics coprocessor provides quick chart screen redraws and stunning 3D graphics.

By using the UniControl™ keypad you can control the cursor, the OK key and the rotary control for streamlining activities and easy feature selection.

 Connecting the C120W with Raymarine's SmartPilot X-Series autopilots you could control the autopilot functions from the display's keypad. The autopilot can be engaged and disengaged directly from the C120W display interface, Avery usefull feature for waypoint and route navigation.

Using the C120's video input you can connect any of Raymarine's plug-and-play onboard cameras to have video views for your like.

The Raymarine C120W Chartplotter kit includes an owners manual, quick reference guide, suncover, flush mounting kit, and a Power/data/video cable.









Back to Top

Raymarine C120W Chartplotter Features:

  • multiple view of several navigation sources on a single display
  • connect  sensor, receiver or appropriate device to have the C120W become into a full feature chartplotter, digital fishfinder, sattelite weather and radio, radar or on board video system.
  • Sunlight Viewable display with improved vivid colors and contrast in all lighting conditions
  • High WVGA resolution - 1280x800 pixels
  • UniControl™ pad for easy display and menu navigation

C120W SeaTalkhs Networking

  • Super fast 100 MB Networking
  • Dual display system - for sharing views of chartplotter, fishfinder, radar, weather and more across two C-Series Widescreen displays

C120 (E62113-RW) Chartplotter

  • Preloaded with NAVIONICS Rest Of the World  Cartography - ROW Charts.
  • Internal high sensitivity GPS sensor
  • Optional using Charts card for 3D views and Satellite photo maps.

C120 Digital Fishfinder

  • Connect to a sounder module (DSM30 or DSM300) using SeaTalkhs networking.
  • Patented HD Digital sonar technology for precise targeting of fish and bottom structure.
  • Four fishfinder presets for one touch access to favorite fishfinder view

C120 Radar

  • Compatible with SeaTalkhs digital radomes
  • HD Digital and Super HD Digital open array compatibility
  • Auto GST technology to provide hands off operation
  • Dual Range radar when used with HD or Super HD Digital Arrays

C120 SIRIUS Weather & Audio

  • SIRIUS Satellite weather and radio functionality with optional SR100 receiver
  • View up to the minute animated weather radar, forecasts, storm warnings and more delivered instantly via satellite.
  • Graphical Nowrad radar, sea surface temps, storm tracks, and more.
  • SIRIUS Satellite Radio functionality right on your C-Series Widescreen display. Set reminders for favorite songs and artists on over 100 SIRIUS Satellite Radio channels.

C120 Video Integration

  • Display remote video sources from CCTV cameras, entertainment systems, and more.
  • Plug and play connectivity with Raymarine CAM100 or CAM50 marine cameras

C120 Instrument Integration

  • Network with SeaTalk, SeaTalk2, SeaTalkng, SeaTalkhs, NMEA 0183 or NMEA 2000 instruments.
  • Display data from NMEA 2000 compatible engine systems.

C120 Autopilot Integration

  • Activate and control Raymarine Smartpilot X-Series Autopilots directly from the chartplotter interface

Back to Top

Raymarine C120W (E62113-RW) 12.1" Multifunction Display - ROW Charts  Specifications:

General
   Data Display Capabilities
 		 GPS, Chartplotter, Fishfinder, Radar, External Video, CDI(Course Deviation Indicator), and customizable Data Bar display
  Dimensions C120W: 14.98" x 9.66" x 6.14" (380.4 x 245.4 x 155.9)

Depth measurement includes powercable

  Display (LCD) Size C120W: 12.1"
  Display Colors 16.7M
  Display Resolution C120W: 1280 x 800 pixels (wide XGA)
  Display Type Sunlight viewable color TFT LCD
  Mounting Methods Console mounting hardware included. Trunnion mounting kit sold separately
  Operating Temperature Limits 14°F to 122°F (-10°C to 50°C) ambient air at 95% RH


  Power Consumption 32 Watts (typical)
  Voltage Range 10.7–32 volts (12/24v nominal)
  Waterproofing CFR46/IPX6 standards
  Weight C120W:10.5lbs (4.76kg)
  Approvals CE - Conforms to FCC - Compliant with Essential requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80
  Humidity Limit up to 95% at 35°C non-condensing
  Display Windows Chart, Radar, Fishfinder, CDI, Video, Data, Weather and Engine Monitor
  Screen Functions Full, half and quarter screens available dependant on function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page window.
  Illumination Screen and keypad: 0 to 100% in 64 steps Day/Night Mode
  Languages English (US), English (UK), Italian, French, Spanish, German, Norwegian, Dutch, Swedish, Danish, Portuguese, Finnish, Icelandic, Chinese, Russian, Greek, Japanese, Korean
  System Alarms Alarm Clock, Anchor, Arrival, Deep, Shallow and Fishing Depth, MOB, Offtrack, Temperature, Timer
  Navigation Alarms Arrival Alarm, Offtrack XTE Alarm

Interfaces
  Network Configurations Single or dual display configurations
  SeaTalkhs Network 2 ports
    Supports 8 devices switch required
  NMEA interface 3 inputs (configurable baud rate)
    2 outputs
  NMEA 0183 Input GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS
  NMEA Output - User selectable APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA
  Seatalk Interface 1 port
  SeaTalk Input Depth,SOG,COG, Position, Waypoint Number, Range/ Bearing, TTG, Boat Speed, Time, XTE, Heading, Wind, Data, Log/Trip, Pilot Status, Temperature, MOB and Cursor Position
  SeaTalk Output Cursor Data, Guard Zone and Navigational Data bridged from NMEA
  SeaTalk2/NMEA2000 1 port Also supports SeaTalkng

  Video Input Composite Video (NTSC or PAL) Input (BNC connector)

GPS

 		 GPS Type Internal High Sensitivity Receiver
  Channels 12
  Frequency 1.575GHz (L1)
  Sensitivity -159dBm (tracking), -142dBm (acquisition)
  SBAS Support WAAS / EGNOS Compatible
  Horizontal Position Accuracy
  Speed Accuracy
  Antenna Helical antenna for even sensitivity across all orientations

Chartplotter
  Cartography Embedded with Navionics ready-to-navigate Rest Of the World Cartographys:  ROW Charts
    Compatible with Navionics Charts on CompactFlash cards
  Chart Scaling 1/32nm (if cartographic detail is available) to 4000nm
  Waypoints 3000 waypoints entered via cursor, lat/lon, range and bearing from present position or at boat’s position. 16 character name can be assigned. Waypoint symbols and groups. Additional storage available on CompactFlash cards.
  Waypoint Transfer Waypoints database via NMEA and CompactFlash cards. Software also available to convert waypoints to Excel file.
  Man Overboard (MOB Mode) Mark placed with course line; readout shows range, bearing, lat/lon of MOB and time elapsed since MOB.
  Presentation Modes Head up, Course up or North up (selectable True or Mag-netic) Relative, Autorange or True Motion Screen offset Radar or 3D synchronization
  Routes A route plan may contain up to 50 waypoints. Up to 150 routes can be stored in the units internal memory. Additional storage available on CompactFlash cards. SmartRoute to create a route from track history.
  Track History 15 tracks with up to 3000 points in each can be stored in the units internal memory. Track optimization reduces number of points used or user selectable time or distance interval. Additional storage available on CompactFlash cards.
  Radar/Chart Overlay Radar image can be overlaid on all screen charts
  Radar/Chart Synchronization To synchronize radar range and chart scale
  3D/Chart Synchronization To synchronize 3D and 2D chart scales and orientation
  Aerial Overlay Overlay of aerial photography on the chart
  AIS Overlay Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.
  Navigation Information Own boats position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint. Bearing and distance to cursor and ETA.
  3D Presentation Modes Active motion mode, planning mode, Adjust rotation and pitch, port, starboard, forward and aft view, multiple views, Vessel offset
  3D Display Declutter, Transducer cone, Depth scale, Waypoint name, Adjust exaggeration, 3D view locator

Fishfinder
  Transducer Transom-mount, in-hull or thru-hull options
  Digital Sounder Modules Compatible with the DSM30 and DSM300
  Receiver Type Patented Raymarine HD Digital receiver technology
  Power Output Dependant on Digital Sounder Module
  Frequency Dependant on Digital Sounder Module
  Alarms Fish Alarm, Fish Depth Alarm, Shallow and Deep Fish Limit
  A-Scope Display Displays Sonar Returns in real time
  Bottom Coverage Display Shows the diameter of the transducer beam where it meets the bottom.
  Bottom Lock Displays echoes directly above the bottom
  Range Markers Easily see how far the boat is from a target on the echo sounder screen
  Target Detection Sonar fish echo with target depth readout
  Zoom 2,3,4x and user programmable Zoom Scales

Radar
  Radar Support Support for all Digital, HD Digital & Super HD Digital Radars
  Image Type Color Radar Support (HD & SHD Radars Only)
  Range Scales (Range Rings) 1/8 (1/16) nm to 72 (12) nm dependant on scanner. Performance limited by scanner type and position.
  Range Ring Accuracy Better than +/- 1.5% of the max. range scale in use, or 22m (72 ft.), whichever is the greatest.
  Bearing Accuracy +/- 1°
  Variable Range Markers 2 x VRM’s, readout nm, sm, km
  Electronic Bearing Lines 2 x EBL’s, floating if required, resolution 1°
  Bearing Scale 360° graduated at 10° intervals 2° small ticks 10° large ticks
  Minimum Range 23m (25 yds)
  Range Discrimination 23m (25 yds)
  Presentation Modes Head up, Course up or North up (selectable True or Mag-netic) Relative or True Motion
  Scanner Control Interference rejection, standby/transmit modes, pulse selection, Tune, Rain, FTC and Sea controls, with selection of manual or automatic control of gain, sea clutter and tune (Auto GST)
  Compass Input NMEA 0183 (required for fast heading data, suitable for MARPA), or SeaTalk
  Waypoint Display Create waypoints and target waypoint displayed with User control of symbols and groups
  MARPA Manual acquisition of up to 25 targets (dependent upon scanner type), automatic tracking, dangerous target alarms, safe zone, target history, true or relative vectors, CPA graphics and indication of target speed/ course, bearing/ range, CPA and TCPA.
  Guard Zone Alarm 2 guard zones, selectable sensitivity level, audible alarm
  Automatic Tuning Auto control of gain, sea clutter and tune
  Off Center Function In Relative Motion, 1/3 or 2/3
  Wakes 10s, 30s, 1 min, 5 min & 10 min options
  Target Expansion Operator selectable with 2 levels available
  Timed TX Rotation periods: 10, 20 or 30 scans Repetition periods: 3, 5, 10 or 15 minutes
  AIS Overlay Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.

Instrument and Engine Data
  Data Pages 5 pages available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or user-configured
  Data Available Vessel position, active waypoint, TTG, VMG - Waypoint, depth, COG, SOG, heading, speed, set/drift, trip, log, ground log, ground trip, rudder, local time and date, sea temperature, app wind, true wind, VMG wind, ground wind XTE, compass, locked heading, w
  Engine Pages 5 pages available. Pre-defined (engine, engine and fuel, fuel resources, engine and resources, twin engines or triple engine support) or user-configured.
  Engine Data Tacho, boost pressure, alternator, oil pressure, coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate, total fuel, load

AIS
  AIS Suppport Support for class B AIS Supports silent mode
  Target Symbols Sleeping, activated, selected, dangerous and lost
  Target Information AIS vectors, buddy tracking, safety critical data and full AIS data.
  Collision Avoidance Safe zones and safety messages
  Alarms Local alarm messages, lost targets

NAVTEX
  Alerts Incoming message (selectable categories)
  Message List Sorting

Weather
  Type SIRIUS Marine Weather
  Weather Elements Storm cast, waves, Canadian radar, lightning, wind, sea surface temperature, observations stations, city weather, NOWRad, storm tracks, surface pressure
  Animated Weather Graphics Weather forecast, weather radar history
  Weather Reports Tropical statements, marine warnings, marine zone forecasts, marine watchbox

General
  Storage Temperature -4°F to 149°F (-20°C to +65°C) ambient air at 95% RH
