Garmin AIS 300 Blackbox Receiver (010-00892-00)

RRP:

~~$499.90~~

Your Price:

$399.90 (You save $100.00)

SKU:

010-00892-00

Brand:

Garmin

Condition:

New

Weight:

0.70 KGS

Availability:

Usually ships within 24 hours.

Shipping:

$62.00 (Fixed shipping cost)

Sorry but this item is currently unavailable.

Please check back at a later stage.

Product Description

Brand New

Garmin AIS 300

Blackbox Receiver

(010-00892-00)

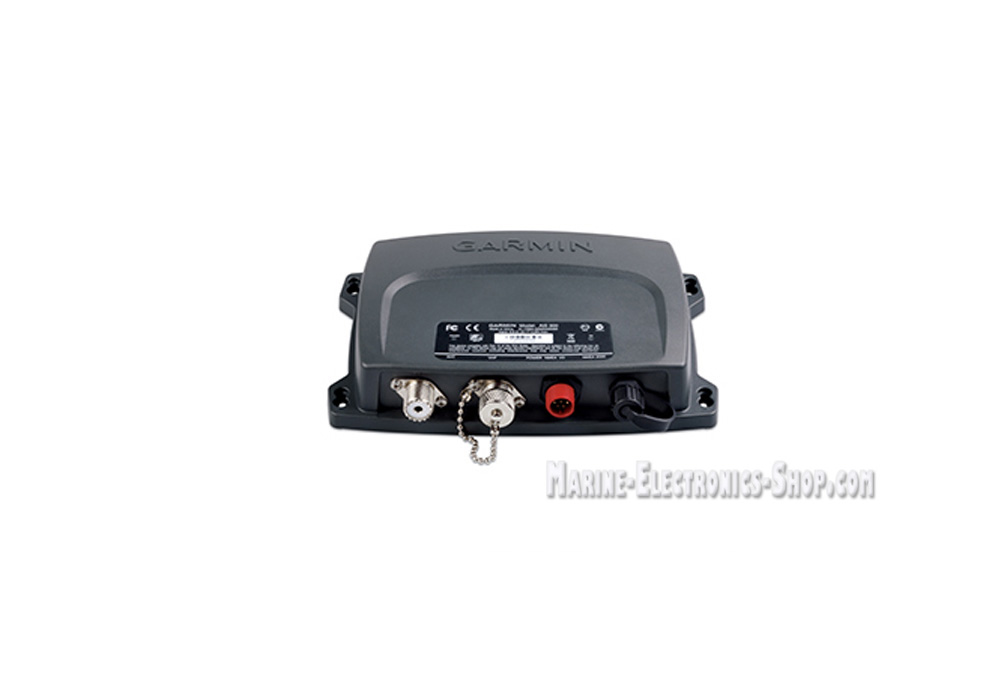

Marine Electronics Garmin AIS 300 Blackbox Receiver

Garmin AIS 300 Blackbox Receiver is an affordable solution to perform data acquisition tasks from AIS-targets that allow sailors to raise awareness about the current situation and avoid collisions. Garmin AIS 300 is able to provide warn of a possible collision with a vessel equipped with AIS.

In the box - Garmin AIS 300 Blackbox Receiver 010-00892-00 :

AIS 300
Power/data cable
NMEA 2000 drop cable (2m)
VHF interconnect cable
NMEA 2000 T-connector
Mounting hardware
Documentation

Description - Garmin AIS 300 Blackbox Receiver 010-00892-00

Garmin AIS 300 Blackbox Receiver relates to "black box" devices and can be easily integrated with chartplotter and VHF radio station made by Garmin. When used with a chart plotter and VHF-equipment by Garmin, AIS 300 Blackbox Receiver provides a quick access to information about the courts and the possibility to call the vessel using DSC functionality without any time loss. At the same time, AIS data will be displayed on the screen of the chartplotter. To avoid losing important information, dual-channel Garmin AIS 300 Blackbox Receiver allows you to immediately monitor both the AIS channel.

AIS 300 also includes a built-in passive antenna splitter which allows to use the same VHF antenna with the Gramin AIS 300 Receiver and with the VHF-radio.

Back to Top

Features and benefits of Garmin AIS 300 Blackbox Receiver 010-00892-00

The high degree of watertightness
Increasing safety of your jorney
Convenience and ease of installation
Built-in passive splitter
Compatible with 12- and 24-volt systems
Easy integration into the NMEA 2000 network
CPA Alarm (when connected to a compatible chartplotter)

Back to Top

Specifications - Garmin VHF 200i Marine Radio 010-00755-11:

Unit dimensions, WxHxD: 8.2" x 5.5" x 1.8" (207 x 140.6 x 45.7 mm)

Weight: 1 lb 7.6 oz (670 g)

Temperature range: From -4°F to 158°F (from -20°C to 70°C)

Compass-safe Distance: 15 3/4 in (40 cm)

Waterproof Rating: IPX7

Source: 9.6–31.2 Vdc (12 Vdc or 24 Vdc boat battery)

Usage: 2.5 W max

Fuse: 5 A fast-acting

NMEA 2000 Power Usage: LEN=2

Antenna Connector: PL259

Antenna Port Impedance: 50 Ω
