Raymarine RayStar125 PLUS Marine GPS Antenna Stng/Nmea0183 Sensor

Raymarine RayStar125 PLUS Marine GPS Antenna Stng/Nmea0183 Sensor

RRP:

~~$385.00~~

Your Price:

$335.00 (You save $50.00)

SKU:

E32119

Brand:

Raymarine

Weight:

0.13 KGS

Availability:

Usually ships within 24 hours.

Shipping:

Free Shipping

Sorry but this item is currently unavailable.

Please check back at a later stage.

Product Description

Brand New

Raymarine RayStar 125

Marine GPS Antenna

(E32119)

The new Raystar 125 Plus is not only a Compact and accurate Marine GPS antenna but with the new features, compatibility with SeaTalk^ng protocols, it adds networking capabilities and even easier installation to Raymarine's multifanction displays or in any case that an external antenna is needed.

Raystar 125 Plus is fully compatible with Raymarine's SeaTalk 1 and NMEA0183 connectivity and with the converter kit that is included it can interfaces with any device that supports SeaTalk^ng network.

Raystar 125 Plus can output SeaTalk^ng, SeaTalk1 or NMEA0183 so it can be combined with Raymarine's Instruments data and autopilots as well as with multifunction displays like C-Series and E-Series.

Raystar 125 Plus is a very accurate Differential marine GPS Receiver decoding correction signals from WAAS (Wide Area Augmentation System) and delivers accuracy that is better then 3 meters.

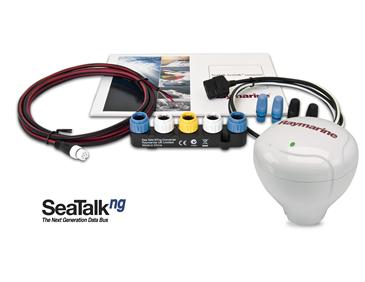

The Raystar 125 Plus comes with a 10 meter (33') interconnect cable, pole mounting kit, flush mounting kit and instruction manual and a SeaTalk1 to SeaTalk^ng Converter Kit.

Raystar 125 Plus Features

Compatible with all Raymarine Multifunction Displays, Instruments and Autopilots.
12 channel satellite receiver with Satellite Differential corrections.
WAAS, EGNOS and MSAS compatible.
User selectable SeaTalkng, SeaTalk 1 or NMEA 0183 output.
Low profile flush mount and threaded pole mount (1" x 14 TPI) kits included.
Removeable interconnect cable facilitates easy installation.
Built-in LED diagnostic indicator.

Raystar 125 Plus GPS Sensor Specifications

Power
	Nominal voltage (volts DC)	12V, 24V systems
	Absolute voltage range (volts DC)	9 - 32 volts (NMEA configuration) 9 - 18 volts (SeaTalk configuration)
	Power consumption (typical) watts	1.2W
Physical
	Overall dimensions (DxH) mm	diameter 95x30
	Product weight kg (lbs)	0.13 (0.29)
	Mounting methods	flush/pole/rail	Pole mount thread: 1" x 14 TPI. This is the standard thread found on VHF radio antenna mounts and extenstion poles.
	Cable length	10m (33')
Data Interfacing
	Protocols supported	SeaTalk ng, SeaTalk 1 or NMEA 0183 (v2.3)	User configured during installation.
Approvals
	EMC Approved	Yes, Europe and FCC
	CE Marked	Yes
Environmental
	Operating temperature range	-10°C to +70°C
	Non-operating temperature range	-20°C to +70°C
	Humidity	up to 95%
	Waterproofing standard	CFR46
GPS Features
	Type	Active antenna
	Signal acquisition	12ch. parallel (C/A code)
	Satellite differential type	WAAS/EGNOS/MSAS
	Differential acquisition	automatic (satellite)
	Beacon differential ready	with RTCM input
	Position accuracy (RMS)
	Position accuracy with SDGPS (RMS)
	Speed accuracy (RMS)
	Time to fi rst fi x from cold start (typical)
	Time to fi rst fi x (after initial cold start)	typically
	Geodetic datum	WGS84 (190 programmable alternatives)
NMEA Sentences Supported
	Input Sentences	PRAYI, PRAYE, PRAYA
	Output Sentences	GPGGA, GPGSA, GPGSV, GPGLL, GPRMC, GPDTM, GPGNS, GPVTG, PRAYA
	Version	NMEA 0183 Version 2.3

Warranty Information

3 Years Full Warranty
