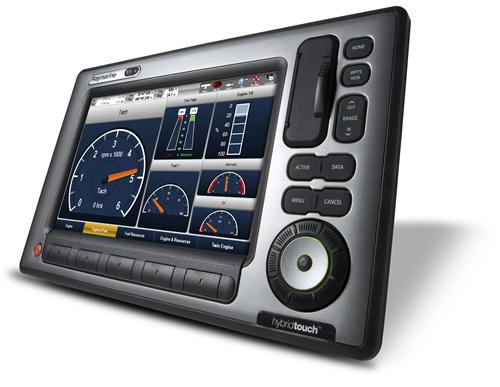

Raymarine E90W Chartplotter

E-Series HybridTouch Widescreen

Multifunction Displays

Preloaded with U.S. Costal Charts

(E62220-US)





Raymarine E90W Chartplotter of E-Series Multifunctional Displays gives fine gourmet taste to navigating. Not only you can Built your system with more than one screen and expand it with SeaTalkhs sensors for fishfinder, radar Weather and more, but you can enjoy the convenience of navigating with few simple touches using E90W's touch screen built with Raymarine's HybridTouch™ Technology and the friendly designed user home menu.

The E90W’s touch screen is built of anti-glare, scratch resistant and ruggedized glass that ensures a reliable, accurate, and durable touch screen experience. It's designed to stand in hard marine environment like rain, spray, etc' and minimizes false inputs. The high resolution WVGA 800 X 480 sunlight viewable display delivers vibrant color and maximum visibility in all light conditions.



Navigating with E90W’s advanced chartplotter is easier than ever. Simply tap in with your finger your waypoints and routes and quickly name and manage them using the on-screen keyboard. You can always choose navigating like "in the old days" using the E90W's regular display Keypads.

This E90W (E62220-US) is already preloaded and ready to navigate with NAVIONICS of continental U.S. coastal charts (lower 48 states). Use E90W's Advantages By upgrading to NAVIONICS Platinum Plus and navigate with high resolution 3D bathymetric view, panoramic port photos, aerial photo charts, coastal points of interest, coast pilot book data and more!

By connecting the E90W Chartplotter to Raymarine's HD Digital radome or open array antenna you could navigate with clearer radar picture with crisp, life-like target presentation. Use E90W's "Bird Mode" radar tracking to track small sea bird targets at distance like an experienced angler looking to the horizon for seabirds above schools of fish.

The E90W Chartplotter  delivers unmatched Features for Fishfinder activity with Raymarine’s patented technology. Using the HD Digital Sounder technology with up to 3 Kilowatts of output power provides a dramatically clearer picture of bottom structure and fish targets by accessing the fishfinder fully automatically and hands free at the helm or in the tower.

Connect the optional SR100 SIRIUS weather and radio receiver to get a full graphical marine weather forcast to your E90W. Using SIRIUS Satellite weather technology (US only) the E90W gets the most recent forecast information including weather alert, storm tracks, winds, lightning, temperatures of sea surface, surface pressure, wave heights and more. By connecting  the SR100 to your boat's stereo you will get over 130 channels of satellite radio entertainment, commercial free music, sports, news and more. You have full control of channels and volume with the display keypads.


The E90W Chartplotter also supports SeaTalk and SeaTalkhs protocols, NMEA0183 and NMEA2000 support. You can Build a single widescreen display network or create a multiple E-Series Widescreen network with up to 8 SeaTalkhs network devices and sensors for connecting to external GPS, radar, fishfinder, weather & radio, autopilots, LifeTag (MOB), engine instruments and other 3rd party electronics and engine monitoring.

Connect the E90W's video input with video input/output cable (A62158) to enjoy up to 3 video sources like Raymarine's plug-and-play onboard cameras as well as an HD VGA output to external LCD monitors and TVs.

The Raymarine E90W Chartplotter kit includes an owners manual, quick reference guide, suncover, flush mounting kit, and a power/data/video cable.






Back to Top

Raymarine E90W Chartplotter Features:

  • HybridTouch™ User Interface
  • New Home Screen simplifies application selection
  • Sunlight Viewable display with Optical Bonding technology for improved color and contrast in all lighting conditions
  • Super high WVGA resolution - 800 x 480 pixels
  • TouchLock™ feature enables total button-based operation

E90W SeaTalkhs Networking

  • Super fast 100 Megabit networking
  • Multiple display networking - Share chartplotter, fishfinder, radar, weather and more across up to five E-Series Widescreen displays

E90W (E62220-US) Chartplotter

  • Preloaded with Navionics ready-to-navigate cartography of U.S. Costal Charts
  • Seamless 2D/3D charplotting
  • Anti-Collision Alarm
  • 3D and Satellite photo maps using optional Navionics Platinum Charts powered by TurboView™ Technology
  • Improved Voyage planning with on-screen keyboard

E90W Digital Fishfinder

  • Connect to DSM30 or DSM300, or DSM400 using SeaTalkhs networking.
  • Patented HD Digital sonar technology for precise targeting of fish and bottom structure.
  • Four fishfinder presets for one touch access to favorite fishfinder view

E90W Radar

  • Compatible with SeaTalkhs digital radars
  • HD Digital and Super HD Digital compatibility
  • Auto GST technology to provide hands off operation
  • Dual Range radar when used with HD or Super HD Digital radomes or arrays
  • Bird mode helps locate flocks of sea birds
  • High speed 48RPM mode for tracking fast moving targets

E90W SIRIUS Marine Weather & Satellite Radio

  • SIRIUS Satellite weather and radio functionality with optional SR100 receiver
  • View up to the minute animated weather radar, forecasts, storm warnings and more delivered instantly via satellite.
  • Graphical Nowrad radar, sea surface temps, storm tracks, and more.
  • Overlay Nowrad radar directly on the chartplotter
  • SIRIUS Satellite Radio functionality right on your E-Series Widescreen display. Set reminders for favorite songs and artists on over 100 SIRIUS Satellite Radio channels.

E90W Video Integration

  • Display remote video sources from CCTV cameras, entertainment systems, and more.
  • Plug and play connectivity with Raymarine CAM100 or CAM50 marine cameras
  • HD compatible VGA output to external TV or monitor

E90W Instrument Integration

  • Network with SeaTalk, SeaTalk2, SeaTalkng, SeaTalkhs, NMEA 0183 or NMEA 2000 instruments.
  • Display data from NMEA 2000 compatible engine systems.

E90W Autopilot Integration

  • Activate and control Raymarine Smartpilot X-Series Autopilots directly from the chartplotter interface

E90W AIS Integration

  • Track AIS targets directly on charplotter or radar applications
  • AIS Buddy List
  • Control silent mode when connected to AIS500 transciever

Back to Top



Raymarine E90W (E62220-US) 9" Multifunction Display - U.S. Coastal Charts pecifications:

General
  Data Display Capabilities GPS, Chartplotter, Fishfinder, Radar, External Video (Composite), CDI(Course Deviation Indicator), and customizable Data Bar display
  Dimensions E90W: 12.46" x 7.74" x 6.14” (316.4 x 196.5 x 155.9) Depth measurement includes power cable
  Display (LCD) Size E90W: 9"
  Display Colors 16.7M
  Display Resolution E90W: 800 x 480 pixels (wide VGA)
  Display Type Sunlight viewable color TFT LCD
  Mounting Methods Console mounting hardware included. Trunnion mounting kit sold separately
  Operating Temperature Limits 14°F to 122°F (-10°C to 50°C) ambient air at 95% RH
  Power Consumption 32 Watts (typical)
  Voltage Range 10.7–32 volts (12/24v nominal)
  Waterproofing CFR46/IPX6 standards
  Weight E90W: 8.5lbs (3.85kg)
  Approvals CE - Conforms to FCC - Compliant with Essential requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80
  Humidity Limit up to 95% at 35°C non-condensing
  Display Windows Chart, Radar, Fishfinder, CDI, Video, Data, Weather, Engine Monitor, Tutorial
  Screen Functions Full, half and quarter screens available dependant on function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page window.
  Illumination Screen and keypad: 0 to 100% in 64 steps Day/Night Mode
  Languages English (US), English (UK), Italian, French, Spanish, German, Norwegian, Dutch, Swedish, Danish, Portuguese, Finnish, Icelandic, Chinese, Russian, Greek, Japanese, Korean
  System Alarms Alarm Clock, Anchor, Arrival, Deep, Shallow and Fishing Depth, MOB, Offtrack, Temperature, Timer
  Navigation Alarms Arrival Alarm, Offtrack XTE Alarm
Human Interface
  hybridtouchTM Touchscreen user interface
    Full functionality also available using hard keys
User Interface
  User Interface UI refresh
Interfaces
  Network Configurations Single, dual or mult-display configurations.
  SeaTalkhs Network 1 port
  SeaTalkhs Network Supports up to 5 display nodes in one network and maximum 8 nodes including displays and sensors Optional network switch required
  NMEA interface 3 inputs (configurable baud rate)
    2 outputs
  NMEA 0183 Input GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS
  NMEA Output - User selectable APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA
  Seatalk Interface 1 port
  SeaTalk Input Depth,SOG,COG, Position, Waypoint Number, Range/ Bearing, TTG, Boat Speed, Time, XTE, Heading, Wind, Data, Log/Trip, Pilot Status, Temperature, MOB and Cursor Position
  SeaTalk Output Cursor Data, Guard Zone and Navigational Data bridged from NMEA
  SeaTalk2/NMEA2000 1 port Also supports SeaTalkng (Next Generation data bus) connectivity. Adapter cables required for SeaTalkng and NMEA2000
  Video Input Composite Video (NTSC or PAL) Input (BNC connector). Optional video cable adds 3 additional composite video (NTSC or PAL) via BNC connectors.
  Video Output VGA output via optional Video accessory cable. User selectable output as pass thru native display resolution or scaled 720p (1280 x 720) display resolution
  Line Audio Alarm Output Line audio alarm output via optional Video accessory cable
Chartplotter
  Cartography

Embedded Navionics ready-to-navigate Cartography: U.S. Coastal Charts (Lower 48 States)


  Cartography Compatible with Navionics Charts on CompactFlash cards
  Chart Scaling 1/32nm (if cartographic detail is available) to 4000nm
  Waypoints 3000 waypoints entered via touch, cursor, lat/lon, range and bearing from present position or at boat’s position. 16 character name can be assigned. Waypoint symbols and groups. Additional storage available on CompactFlash cards.
  Waypoint Transfer Waypoints database via NMEA and CompactFlash cards. Software also available to convert waypoints to Excel file.
  Man Overboard (MOB Mode) Mark placed with course line; readout shows range, bearing, lat/lon of MOB and time elapsed since MOB.
  Seamless 2D-3D view Transition between 2D and 3D views by adjusting Pitch angle
  2D Presentation Modes Active motion/planning mode; Head up, Course up or North up (selectable True or Mag-netic); Relative, Autorange, True Motion or Vessel offset Screen; Radar or chart-chart synchronization
  Routes A route plan may contain up to 50 waypoints. Up to 150 routes can be stored in the units internal memory. Additional storage available on CompactFlash cards. SmartRoute to create a route from track history.
  Track History 15 tracks with up to 3000 points in each can be stored in the units internal memory. Track optimization reduces number of points used or user selectable time or distance interval. Additional storage available on CompactFlash cards.
  Radar/Chart Overlay Radar image can be overlaid on all screen charts
  Radar/Chart Synchronization To synchronize radar range and chart scale
  Chart-Chart Synchronization To synchronize position, rotation and range of synchronised chart windows.
  Aerial Overlay Overlay of aerial photography on the chart
  Weather Overlay Nowrad overlay on chart and access to Weatehr Reports from chart window
  AIS Overlay Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.
  Navigation Information Own boats position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint. Bearing and distance to cursor and ETA.
  3D Presentation Modes Active motion/planning mode; Head up, Course up, or North Up; Adjust rotation and pitch; Vessel offset
  3D/2D Display Declutter, Waypoint name; 2D View: Heading Vector, COG Vector, Tide Arrow, Wind Arrow; 3D View: Transducer cone, Depth scale, , Adjust exaggeration,
  Alarms Anti-collision alarm (based on chart data)
Fishfinder
  Transducer Transom-mount, in-hull or thru-hull options
  Digital Sounder Modules Compatible with the DSM30, DSM300, and DSM400
  Receiver Type Patented Raymarine HD Digital receiver technology
  Power Output Dependant on Digital Sounder Module
  Frequency Dependant on Digital Sounder Module
  Alarms Fish Alarm, Fish Depth Alarm, Shallow and Deep Fish Limit
  A-Scope Display Displays Sonar Returns in real time
  Bottom Coverage Display Shows the diameter of the transducer beam where it meets the bottom.
  Bottom Lock Displays echoes directly above the bottom
  Range Markers Easily see how far the boat is from a target on the echo sounder screen
  Target Detection Sonar fish echo with target depth readout
  Zoom 2,3,4x and user programmable Zoom Scales
Radar
  Radar Support Support for all Digital, HD Digital & Super HD Digital Radars
  Image Type Color Radar Support (HD & SHD Radars Only)
  Range Scales (Range Rings) 1/8 (1/16) nm to 72 (12) nm dependant on scanner. Performance limited by scanner type and position.
  Range Ring Accuracy Better than +/- 1.5% of the max. range scale in use, or 22m (72 ft.), whichever is the greatest.
  Bearing Accuracy +/- 1°
  Variable Range Markers 2 x VRM’s, readout nm, sm, km
  Electronic Bearing Lines 2 x EBL’s, floating if required, resolution 1°
  Bearing Scale 360° graduated at 10° intervals 2° small ticks 10° large ticks
  Minimum Range 23m (25 yds)
  Range Discrimination 23m (25 yds)
  Presentation Modes Head up, Course up or North up (selectable True or Mag-netic) Relative or True Motion
  Scanner Control Interference rejection, standby/transmit modes, pulse selection, Tune, Rain, FTC and Sea controls, with selection of manual or automatic control of gain, sea clutter and tune (Auto GST)
  Compass Input NMEA 0183 (required for fast heading data, suitable for MARPA), or SeaTalk
  Waypoint Display Create waypoints and target waypoint displayed with User control of symbols and groups
  MARPA Manual acquisition of up to 25 targets (dependent upon scanner type), automatic tracking, dangerous target alarms, safe zone, target history, true or relative vectors, CPA graphics and indication of target speed/ course, bearing/ range, CPA and TCPA.
  Guard Zone Alarm 2 guard zones, selectable sensitivity level, audible alarm
  Automatic Tuning Auto control of gain, sea clutter and tune
  Off Center Function In Relative Motion, 1/3 or 2/3
  Wakes 10s, 30s, 1 min, 5 min & 10 min options
  Target Expansion Operator selectable with 2 levels available
  Timed TX Rotation periods: 10, 20 or 30 scans Repetition periods: 3, 5, 10 or 15 minutes
  AIS Overlay Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.
  Dual Range Dual range capable with digital radar scanners
  Dual Radar Can support connection of 2 digital radar scanners (not simultaneous operation)
Instrument and Engine Data
  Data Pages 5 pages available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or user-configured
  Data Available Vessel position, active waypoint, TTG, VMG - Waypoint, depth, COG, SOG, heading, speed, set/drift, trip, log, ground log, ground trip, rudder, local time and date, sea temperature, app wind, true wind, VMG wind, ground wind XTE, compass, locked heading, w
  Engine Pages 5 pages available. Pre-defined (engine, engine and fuel, fuel resources, engine and resources, twin engines or triple engine support) or user-configured.
  Engine Data Tacho, boost pressure, alternator, oil pressure, coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate, total fuel, load
AIS
  AIS Suppport Support for class B AIS Supports silent mode
  Target Symbols Sleeping, activated, selected, dangerous and lost
  Target Information AIS vectors, buddy tracking, safety critical data and full AIS data.
  Collision Avoidance Safe zones and safety messages
  Alarms Local alarm messages, lost targets
NAVTEX
  Alerts Incoming message (selectable categories)
  Message List Sorting
Weather
  Type SIRIUS Marine Weather
  Weather Elements Storm cast, waves, Canadian radar, lightning, wind, sea surface temperature, observations stations, city weather, NOWRad, storm tracks, surface pressure
  Animated Weather Graphics Weather forecast, weather radar history
  Weather Reports Tropical statements, marine warnings, marine zone forecasts, marine watchbox
General
  Storage Temperature -4°F to 149°F (-20°C to +65°C) ambient air at 95% RH
