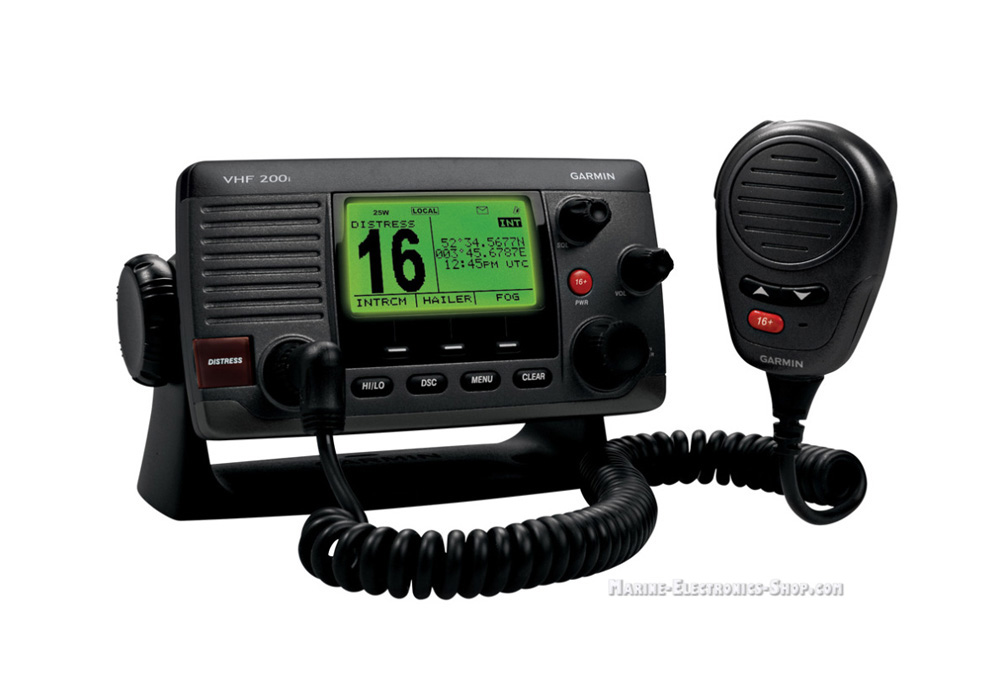

Garmin VHF 200i Marine Radio provides radio communication, as well as increased convenience and safety for users around the world. The standard version of the VHF 200i includes a two-way megaphone system. The device is compatible with NMEA 0183 and NMEA 2000 interface, which increases the flexibility and functionality when using the equipment on board of the vessel.

In the box - Garmin VHF 200i 010-00755-11 :

• VHF 200
• Hailer NMEA 0183 cable
• Power cable
• Bail mount and knobs
• Flush mount gasket
• Marine mounting screws
• Mic hanger
• Protective cover
• Removable speaker mic
• Documentation

Description - Garmin VHF 200i 010-00755-11

 Back to Top

Features and benefits of Garmin VHF 200i Marine Radio

Confident connection

Due to the power transmission 25 W of Garmin VHF 200i you will stay in touch anywhere in the ocean. The standard set of Garmin VHF 200i includes detachable microphone and built-in 20-watt megaphone that can be connected to a horn or external speaker on the deck or the superstructure. VHF 200i also supports a single device GHS 10, which provides full control of the radio system from a remote office. No matter where you are and where you are going - you'll always have on hand a reliable connection, and each one of your every jorny will be safe.

Safety - first and foremost

Garmin VHF 200i provides full function digital selective calling (DSC) Class D via NMEA 0183 or NMEA interface 2000. In the event of danger DSC technology allows you to send a signal of distress with a single touch of a button. If your boat has a compatible GPS-chartplotter, you can transmit the location of your vessel in a digital format. The Marine Radio Garmin VHF 200i also includes NOAA weather alerts and Position Tracking function (position tracking), with which you can watch the movements of up to three vessels in your area.

Great Info Presentation

VHF 200i Marine Radio uses a simple user interface, and you will always be on hand the right information at the right time. In addition to the buttons and knobs fixed-function, Garmin VHF 200i features three programmable buttons associated with the on-screen menu and designed for viewing and selecting the information you need. VHF 200i provides excellent sound quality so every message will sound loud and clear. The information is displayed on the display with a diagonal of 3.2 "which is a big screen for this class of equipment.

Carefully designed construction

Garmin VHF 200i is ready to withstand adverse sea conditions. To simplify the installation process provides several options for mounting the device. Thanks to the removable front cover unit, VHF 200i can be easily mounted on the cockpit or cabin bulkhead panel. Flexible and functional model Garmin VHF 200i has the ability to flush mounting. Durable materials of this compact unit provides long service life. The enclosure complies with IPX7 waterproofing.

Back to Top

Specifications - Garmin VHF 200i Marine Radio 010-00755-11:

Unit Dimensions, WxHxD: Flush-mounted: 7.16 x 3.86 x 6.42" (18.2 x 9.8 x 16.3 cm); Bracket-mounted: 7.56 x 4.65 x 6.42" (19.2 x 11.8 x 16.3 cm)

Waterproof: yes (IPX7)

Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)

Compass-safe Distance: 20 in. (500 mm)

Speaker Microphone Audio Power: 94 dBA

Digital Selective Calling: Class D

Frequency Bands: All U.S., Canada, and international marine channels; 10 NOAA weather channels

Operating Voltage: 12.0 Vdc

Current Drain: Standby: 350 mA; Receive: 600 mA; Transmit: 6.0 A at HI power (25 W); 2.0 A at LO power (1 W)

Hailer Output Power: 20 W at 4 Ω

Hailer and Foghorn Output: 20 W with automatic and manual foghorn signals and adjustable, base fog frequencies

Transmitter Output (at 13.6 Vdc): 25 W (HI); 1 W (LO)

Frequency Range: 156.050 MHz to 163.275 MHz (including WX channels)
