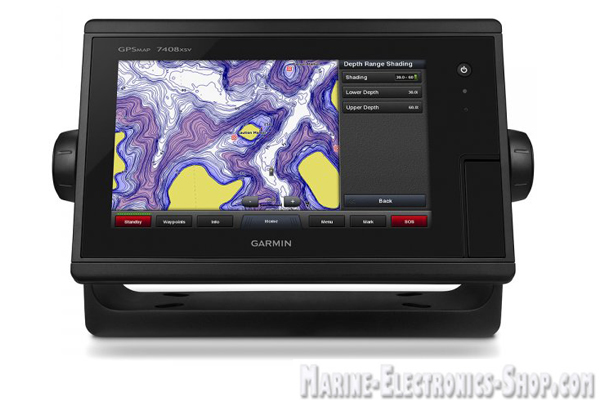

Garmin GPSMAP 7408xsv chartplotter was designed for owners of motor and sailing vessels, as well as participants in sailing regattas, who want to get high performance, ease of management and integration capabilities.

In the box - Garmin GPSMAP 7408xsv 01-01305-02:

• GPSMAP 7408xsv with worldwide basemap
• Power/data cable
• NMEA 2000® drop cable
• T-connector
• Bail mount with knobs
• Flush mount kit
• Protective cover
• Documentation

Description - Garmin GPSMAP 7408xsv 01-01305-02

Garmin GPSMAP 7408xsv with a wide 8", "multitouch" screen which is equipped with an internal GPS-receiver, providing updated data direction and location 10 times per second. The device provides the necessary functions for connection to the grid, including the Garmin Marine Network and NMEA 2000, as well as built-in Wi-Fi®.

When GPSMAP 7408xsv is used with an optional cartography BlueChart g2 Vision®, it becomes possible to add to your chartplotter a number of advanced features.

- Display mode MarinerEye and FishEye will provide 3-D perspective above and below the waterline.
- Satellite images and aerial photographs with high resolution to help you better navigate the unfamiliar terrain.
- Technology "Auto-Guide" will calculate for you the best route, going around obstacles, shallow water and buoys.

Back to Top

Features and benefits of Garmin GPSMAP 7408xsv 010-01305-02

Special functions for sailing vessels
Garmin GPSMAP 7408xsv supports special functions for sailing, including lay lines, enhanced wind rose, line direction and course over ground, true wind data fields and control "the tide / current / time". Through those indicators you can see at a glance all the important information to consider, including the true and apparent wind angle, demolition, true or apparent wind speed, horizontal or vertical charts and data panel with adjustable data fields.

The clearest scan sonar in the water
Scanning Sonar Garmin DownVü ™ provides for your GPSMAP 7408xsv, almost photographic image of everything that takes place under your boat. Scanning Sonar Garmin SideVü gives a clear image of objects located on the sides of the vessel. You can see detail underwater objects, structure and fish. One transducer combines the traditional sonar Garmin HD-ID sonar and scanning sonar DownVü. In addition, Garmin GPSMAP 7408xsv supports HD-ID for trolling motors with built-in transducers Minn Kota and MotorGuide. Also GPSMAP 7408xsv model includes the function of recording data sonar, which coordinates the sonar echoes with the location of your vessel. Preservation of digital information can then be viewed on a PC using the free HomePort ™ software. Using a cable to exchange user data, you can share your waypoints and routes with other devices.

Garmin Marine Network and NMEA 2000 support
Full compatibility of the GPSMAP 7408XSV with the network allows you to extend the capabilities of your onboard equipment. Garmin GPSMAP 7408xsv supports the radar, autopilot, marine lights, screens, FUSION-Link, sensors, remote sonar modules, digital switches, thermal imaging cameras, wired keyboard GRID. In addition, the device allows communication with other compatible GPSMAP devices, including data radar, sonar module GSD 24 and GSD 26, additional mapping and user data (waypoints, routes, and tracks). User data entered in one chartplotter automatically synced with other chartplotters network.

Location and direction data update 10 times per second
Fast and high-sensitivity receiver 10Hz GPS / GLONASS provides location and direction data update 10 times a second. With Garmin GPSMAP 7408xsv, your movements on the screen will look much smoother. Using this feature, you will be able mark up to 5,000 waypoints with exact coordinates for a safe and fast way back search.

Compatibility with sensors gWind
In the gWind, gWind Wireless and gWind Race sensors, GPSMAP 7408xsv applies double edge technology with 3-bladed propeller. This component is connected to the NMEA 2000 network to a compatible Garmin chartplotter via the GND 10 (bridge "black box").

Multimedia system FUSION-Link
You will be able to control all compatible audio systems FUSION-Link directly from the GPSMAP 7408xsv chartplotter.

Built-in Wi-Fi technology / ANT +
Garmin GPSMAP 7408xsv includes built-in Wi-Fi / ANT® technology for applications Garmin Helm ™ iBlueChart® Mobile.

View and manage the GPSMAP 7408xsv with your smartphone or tablet
Garmin Helm application allows you to view the data and manage the GPSMAP 7408 xsv with a compatible smartphone or tablet to enhance the user's awareness of the environment during the voyage. Garmin GPSMAP 7408xsv provides convenient switching between vertical and horizontal orientation of the screen for a variety of mounting options. When using the iPhone® or iPad® you can record video from your chartplotter screen and show it to family and friends. Download the application from App Store ™ or Google Play ™.

Use Apple® device on board using BlueChart Mobile app
Using BlueChart Mobile, a free app from the App Store ™, you can plan the sea routes on the iPad or iPhone, and then transfer them to the Garmin GPSMAP 7408xsv wirelessly.

Improved "Auto-Guide"
Just enter your desired destination, and Garmin GPSMAP 7408xsv will immediately offer you a secure virtual route, built with the low bridges, areas of shallow water, and other obstacles.
An enhanced version 2.0 offers additional features and capabilities. Now you can adjust the calculated route "Auto-Guide", adding the waypoints (stops or targets). You can also view the dangerous points located along the calculated route. Version 2.0 allows Garmin GPSMAP 7408xsv to calculate the time of arrival at any point of the route (this feature is very convenient if the arrival time should be consistent with the time of cultivation of bridges or other events with strict time regime). You have the ability to save "Auto-Guide" routes for future use by writing to the SD ™ memory card cartography BlueChart® g2 Vision®.

Simplified transfer of SOS distress signal
Garmin GPSMAP 7408xsv allows any person, even a stranger with marine electronics and radio communication protocols, in an emergency to get in touch with the Coast Guard. Just click on the SOS button on the touchscreen of GPSMAP 7408xsv and your VHF network will automatically tune on the emergency frequency channel. The screen will show a list of possible situations (fire, man overboard, etc.) After selecting the desired option, on the screen of GPSMAP 7408xsv will appear an approved sample of the distress signal from the vessel with current GPS coordinates. This message, containing all the necessary information will be sent to the Coast Guard.
Sharing Waypoints GPX
If your GPS-navigator, issued not by Garmin, or your waypoints were saved on a portable Garmin navigator , you can easily transfer the data to your GPSMAP 7408xsv, through GPX format of an industry standard. GPX - is a new standard format for exchanging GPS data between different platforms and applications. With this easy-to-use interface technology you can easily exchange data between devices.

Special functions for sailboats
To help you achieve the best results in a sailing race, Garmin GPSMAP 7408xsv provides you a page with the virtual start line and data fields, which display lay lines, time to start and race timer, synchronized with all networked Garmin GPS-devices. Additional features supported include enhanced for sailing compass rose, line direction and course over ground, the demolition of the true and apparent wind parameters, etc. You can also use the built-in connectivity options to access the various marine applications with the help of compatible smartphones or tablet computers.

The transducer of the lower viewing Panoptix ™
One Panoptix bottom view transducer, with three wonderful review mode allows you to watch the fish swimming around your vessel, in real time. Garmin GPSMAP 7408xsv, shows the entire water column, on which you swim, in 3-D mode, from the bottom to the water surface, including all the fish inside. Even without mooving, you'll have the opportunity to observe the objects under the ship in 3-D mode.

LIVEVÜ DOWN mode
GPSMAP 7408xsv displays moving pictures under the sonar vessel in real time. On this screen, purple color indicates the reflected signals from the bait. Old data sonar located on the left.

REALVÜ 3-D DOWN mode
Garmin GPSMAP scans the area below the boat from front to back and from side to side.

Back to Top

Specifications - Garmin GPSMAP 7408xsv 01-01305-02 :
