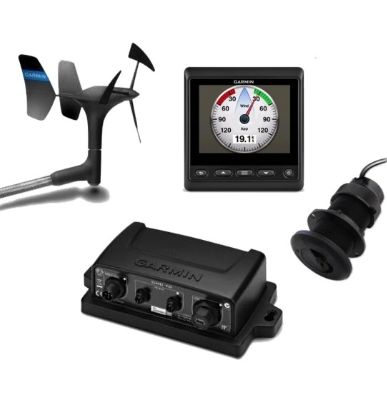

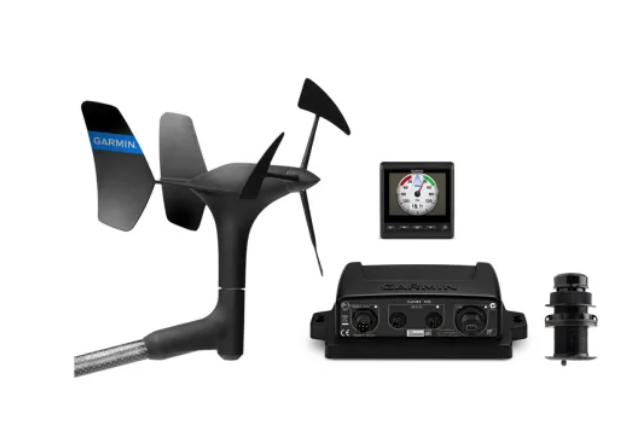

The Garmin GMI™ Wired Start Pack 52 (010-01248-80) combines the GMI™ 20 display, gWind™ Wired, and DST810 transducers to deliver precise wind, depth, and speed data for enhanced marine performance and navigation.

Garmin GMI™ Wired Start Pack 52 - Description

The GMI™ Wired Start Pack 52 offers a complete marine instrumentation solution for sailors and boaters. Featuring the GMI™ 20 digital display, gWind™ Wired wind sensor, and DST810 depth-speed-temperature transducer, it provides accurate environmental data to optimize sailing efficiency, performance, and safety on every voyage.

All-in-One Marine Data Solution

This starter pack combines wind, depth, speed, and temperature sensors with a bright, intuitive display, making it ideal for both recreational and professional sailors.

GMI™ 20 Display Integration

The GMI™ 20 color display delivers real-time, easy-to-read marine data with customizable pages for wind, depth, speed, and temperature metrics.

Reliable Wind Measurements

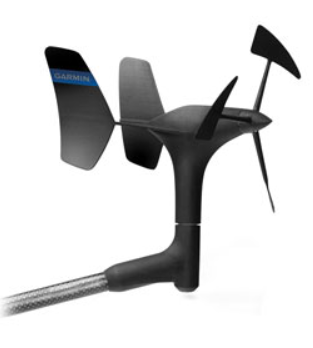

The gWind™ Wired sensor uses twin-fin technology and an optical sensor to provide stable, accurate wind speed and direction readings even in shifting wind conditions.

Accurate Depth and Speed Sensing

The DST810 transducer ensures precise depth, speed, and temperature readings, helping you navigate safely in shallow or complex waters.

Wired Network Connectivity

Seamlessly connects to your NMEA 2000® network, ensuring consistent, real-time data sharing between sensors and displays.

Durable Marine Construction

Built to withstand harsh marine environments with weatherproof materials, ensuring long-term reliability and minimal maintenance.

Easy Installation and Setup

The pack includes pre-configured cabling and mounting components for quick installation and immediate functionality out of the box.

Garmin GMI™ Wired Start Pack 52 - Key Features

Comprehensive Marine Monitoring

Combines wind, depth, speed, and temperature sensors for complete awareness of your marine environment.

High-Visibility Display

The GMI™ 20 display features a 4-inch color screen with adjustable backlighting for excellent visibility in any light conditions.

Precision Wind Data

The gWind™ Wired sensor’s twin-fin design ensures accurate and stable wind direction and speed data at all angles.

Multi-Parameter Transducer (DST810)

Measures depth, water temperature, and vessel speed with superior accuracy for safer, more informed navigation.

NMEA 2000® Network Ready

Ensures smooth communication between all onboard Garmin devices and compatible systems.

Weatherproof Durability

Designed with UV-resistant and waterproof materials that perform reliably in extreme marine conditions.

Plug-and-Play Installation

Includes mounting hardware and pre-configured cables for an easy setup process and quick data synchronization.

Garmin GMI™ Wired Start Pack 52 - What Is In The Box

• gWind™ transducer
• GMI™ 20 marine instrument
• GND™10 black box bridge
• Airmar DST810 thru-hull smart transducer
• 2 NMEA 2000® drop cable (2 meters)
• NMEA 2000 power cable
• 4 NMEA 2000 T-connectors
• NMEA 2000 terminators
• Mast cable with female connector (25 meters)
• Nexus female field installable connector
• Mast bracket
• Mounting hardware
• Documentation

Garmin GMI™ Wired Start Pack 52 - Specifications
