Garmin GHP Compact Reactor Autopilot is ideal for vessels with a hull length of up to 9 meters with one outboard motor. The device is based on a solid state drive with a 9-axis compass system (AHRS). The GHP Compact Reactor Hydraulic Autopilot will free you from the obligation to manually hold the steering wheel, even when exposed to currents and wind. You can enjoy boat trips, while the device is to minimize the error direction, yaw, steering movements and power consumption.

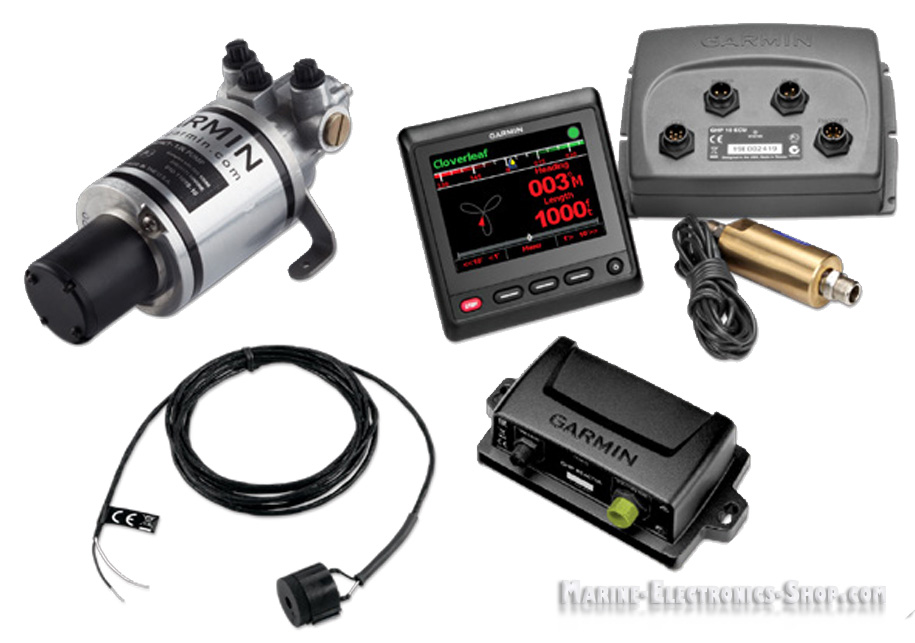

In the box - GHP Compact Reactor Hydraulic Autopilot (010-00705-03):

• GHC 20 helm control display
• Shadow Drive
• GHP Reactor CCU (Course Computer Unit)
• 1.0 L Pump
• ECU (Electronic Control Unit)
• ECU power cable
• Interconnect cable
• Buzzer
• NMEA 2000 drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

Description - GHP Compact Reactor Hydraulic Autopilot (010-00705-03):

Garmin GHP Compact Reactor Hydraulic Autopilot offers you the complete set of autopilot for motor and sailing vessels. Earlier this modern marine technology was only available to commercial vessels owners. GHP Compact Reactor represents the most sensitive autopilot system that Garmin have ever produced.

GHP Compact Reactor Hydraulic Autopilot is characterized by high flexibility. The same package is suitable for motor and sailing vessels, offering features such as stabilization in the direction,stabilization in the wind, performance jibe / tack, perform incremental rotations, etc.

The GHP Compact Reactor Hydraulic Autopilot is ideal for all types of motor boats with hydraulic steering system. The Garmin GHP Autpilot can be used on the boats with the motor inside the vessel, with outboard motors, transom or diesel engines. Owners of motor vessels may rely on GHP Compact Hydraulic Autopilot to be a reliable and simple operational system.

Garmin GHP Reactor with 9-axis semiconductor ESP system can be installed almost anywhere in the vessel. The system startup procedure will require a minimum of effort. Thanks to the patented technology Garmin Shadow Drive, users can maintain control of the ship, even with an actuated autopilot. When ever you turn the wheel, Garmin Shadow Drive will automatically turn off the GHP Compact Reactor Hydraulic Autopilot, allowing the helmsman to perform the maneuver. After holding steady course autopilot system will be automatically reconnected.

 Back to Top

Solid-state 9-axis Attitude Heading Reference System
Thanks to its modern 9-axis Attitude Heading Reference System (AHRS), you can install the Garmin GHP Compact Reactor Hydraulic Autopilot almost anywhere on the vessel, without observing a strict orientation equipment. In addition, this new system minimizes the error direction, yaw, steering movements and power consumption, while providing a comfortable sailing.

Response to external conditions
This remarkable GHP Compact Reactor Hydraulic Autopilot takes the sea state in to account, in order to hold a predetermined rate. Even in the face of strong pitching, you can be sure that the GHP Reactor System will not get off to the desired course.

Minimum steps for commissioning and calibration
Of course, all autopilots is required to perform certain actions for the equipment commissioning and calibration. With GHP Compact Reactor Hydraulic Autopilot, Garmin have tried to make these procedures more simple and fast as possible. Garmin's motto is - "the power of simplicity"

Full integration with Garmin chartplotters
By connecting to the network system compatible Garmin chartplotter, you get to control the Garmin Autopilot GHP Compact Reactor from anywhere on board. The system not only provides reliable retention of a given course in virtually all weather conditions and wind, but also offers a variety of pre-programmed trolling and search procedures. Plus, with BlueChart g2 Vision HD charts (sold separately), you gain optional features like Auto Guidance, which automatically steers GPS paths.

Back to Top

Specification - GHP Compact Reactor Hydralic Autopilot (010-00705-03):

• Dimensions: 4.3 "x 4.4" x 1.9 "(10.9 x 11.2 x 4.8 cm)
• Reference: 010-00705-15
• Display resolution: 320 x 240 pixels
• Display Type: QVGA color LCD display
• Input / Output NMEA: NMEA 0183 (GHC 10), NMEA 2000 (GHP 10 GHC 10)
• Temperature range: -15 ° C to 70 C ° (5 ° F to 158 ° F)
• Power supply:
• GHP 10: 10V - 20V
• GHC 10: 7V - 32V
