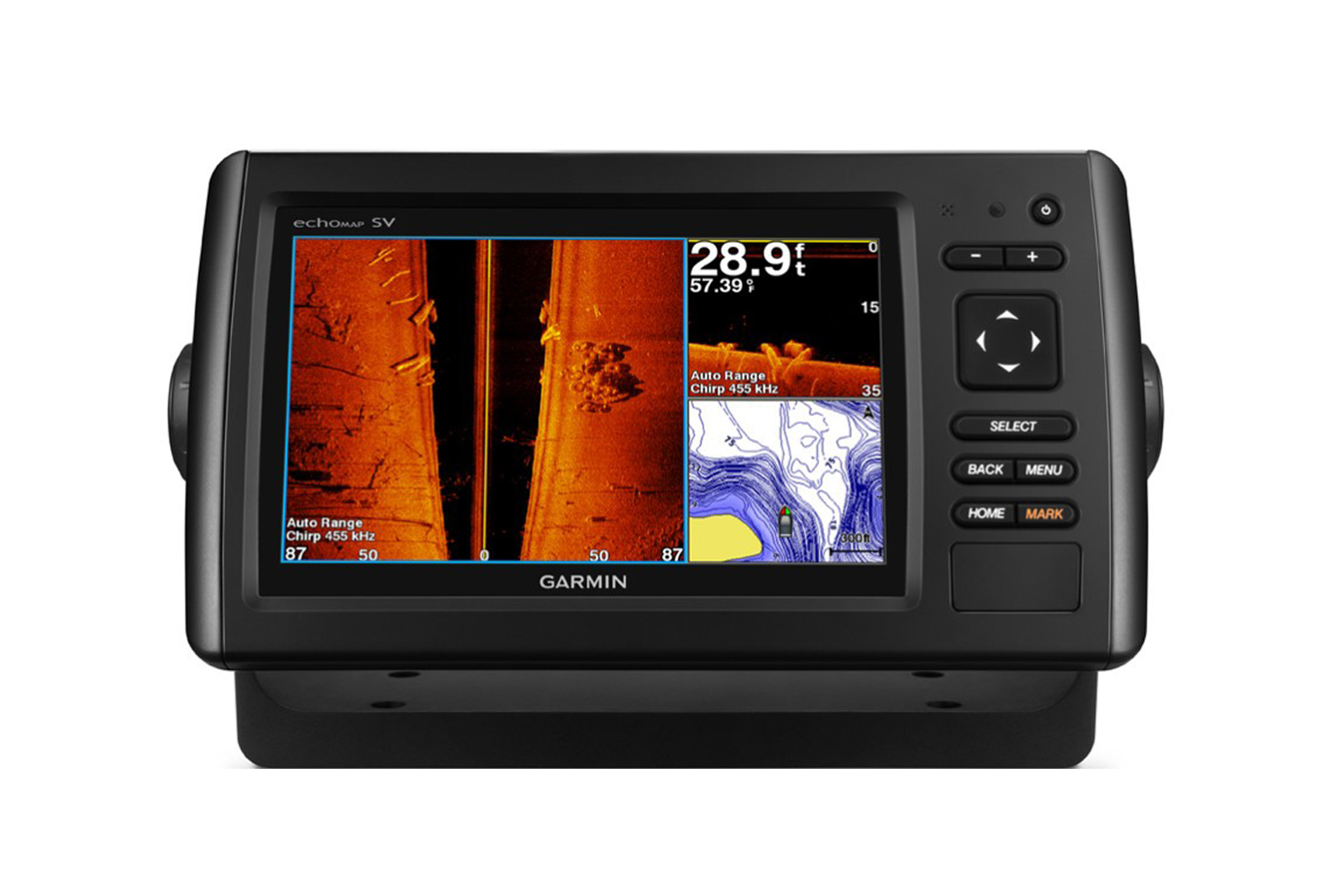

Garmin ecoMAP CHIRP 72sv includes a large wide screen color display with automatically adjustable brightness levels and a combined GPS / Glonass receiver that updates the location of up to five (5) times per second. Chartplotter Garmin ecoMAP CHIRP 72sv with Transducer supports dual frequency sonar with CHIRP DownVu and SideVu technology.

In the box - Garmin echoMAP CHIRP 72sv with Transducer (010-01574-01):

• Garmin echoMAP CHIRP 72sv with world base map
• Power / Data Cable
• Tilt mount
• Quick-release holder
• Protective cover
• Set for flush mounting
• The transducer GT52HW-TM (12-pin)
• Transom mount
• Mount trolling motor
• Hardware
• Documentation

Description - Garmin echoMAP CHIRP 72sv with Transducer (010-01574-01):

Garmin echoMAP CHIRP 72sv with Transducer has a 7" high-resolution color display with a 800 x 480 pixels resolution. Garmin echoMAP CHIRP 72sv chartplotter is equipped with a tranducer GT52HW-TM with CHIRP DownVü and advanced side scan technology CHIRP SideVü. With the help of the CHIRP SideVü technology, you will be able to see the fish on the right and left of the boat, which greatly facilitates the search of fishing places. The scanning technology Garmin HD-ID ™ and DownVü / SideVü, combined with CHIRP technology allows you to get the underwater world image with very high quality and maximum separation purposes. Garmin echoMap CHIRP 72sv also supports scanning sensors PanoptixTM (sold separately). Scanning depth of the echoMAP CHIRP72sv chartplotter is up to 250 meters. Built-in GPS / GLONASS receiver updates position 5 times a second. Garmin echoMAP CHRIP 72sv includes Quickdraw Contours software for an instant creation of HD fishing maps.

 Back to Top

CHIRP Technology

Garmin echoMAP 72sv with Transducer includes CHIRP technology, the most advanced technology for use in fishing. CHIRP technology feature provides a high level of detail due to the signal sent on multiple frequencies. This makes it possible for Garmin echoMap 72sv with Transducer to receive more information per time unit compared with the usual sonar. Thus, the image on the chartplotter screen will apear with the highest accuracy and precision, reflecting the real situation under your boat.

Scanning image

Garmin DownVü technology, used by Garmin echoMAP CHIRP 72sv with Transducer, gives you an image similar in quality to a photo picture of what is under your boat at depths up to 250 meters. You will see the bottom of the structure, submerged objects and fish. Standard sounder Garmin HD-ID ™ sounder and DownVü combined into a single tranducer. CHIRP SideVü gives a clear image of objects located on the right and left sides of the boat. Also, Garmin echoMAP CHIRP 72sv chartplotter supports Minn Kota® and MotorGuide® trolling motors with built-in transducers.

GPS / Glonass receiver

High-sensitivity GPS / Glonass receiver provides to Garmin echoMAP CHIRP 72sv with Transducer an accurate positioning up to five times per second. The use of two satellite navigation systems is a pledge of the highest accuracy of the coordinates. After saving those you will easily and without any error be able get back to the desired point.

Sea routes

Using special charts BlueChart g2 Vision included in the Garmin echoMAP CHIRP 72sv with Transducer you'll be able to navigate your ship based on ship routes, and pass by the possible obstacles located on route. You can make adjustments to the paved route, adding their intermediate points. Using the Garmin echoMAP CHIRP 72sv, in the very beginning you'll know exactly the time of arrival at the destination.

GPX waypoints transfer

If you have frequently used waypoints, tracks or routes which are stored in the device from another manufacturer of GPS navigators or the GARMIN tourist navigator, they can now easily transfered to your new chartplotter echoMap CHIRP 72sv with Transducer. GPX - is an open data standard for the GPS navigators allowing to exchange data between different devices and applications, even from different manufacturers. None of your waypoint will be lost.

Create your own HD map

Quickdraw Contours is a free program, available and easy to use software pre-installed on your Garmin echoMAP CHIRP 72sv with Transducer. The program is able to quickly simulate a map of your favorite fishing places. With this program you can customize your maps the way you want. Keep the data in the memory of your echoMAP CHRIP 72sv to or share them with friends. While you are fishing, Quickdraw Contours creates maps of your own spots. Do not send anything, record, download from other programs - everything happens by itself.

Take your Garmin echoMAP CHIRP 72sv with Transducer with you

When you leave the boat ,now it easy to take your Garmin echoMAP CHIRP 72sv with you. You no longer need to disconnect and then connect the power cord and the back of the transducer cable. The cables are now integrated into the device's mount. This allows you to quickly set up and start using the ehomap CHIRP 72sv or turn off the power and pull the chartplotter out of the holder.

Back to Top

Specification - Garmin echoMAP CHIRP 72sv with Transducer (010-01574-01):

• Screen size, inch: 7 "
• Screen Resolution (H x W), pix .: 800 x 480
• Display type: WQVGA
• Standard sonar: HD-ID ™ / Garmin DownVü / CHIRP SideVü
• Frequency sonar kHz: 77/200/455/800
• Radiation power, W: 500
• Maximum depth, m: 250
• Temperature: yes
• Speed: Yes
• Waterproof: IPX7
• Standard sensor: GT52HW-TM
• Standard sensor mount: transom
• Display Mounting: Swivel
• Type of memory cards: microSD
• Cartography: Yes
• Waypoints: 5000
• Routes: 100
• Tracks: 50
• Interface: NMEA 0183/2000
• Current consumption mA (without backlight): 0.55
• Dimensions (W x H x D) mm: 250 x 139 x 51
• Power supply, V (DC): 12
• Weight, kg: 0.7
